Actel offers a range of surface-mount sockets to make it easier for designers to prototype their designs using Actel's one-time-programmable FPGAs.
These sockets are available in small quantities from Actel - just contact your local Actel representative or distributor for pricing and availability information. If you need quantities of 25 pieces or more, please contact your local vendor's representative or distributor. (For more information, see below)
You can download mechanical drawings of these prototyping sockets by clicking on the drawing number. (For other package and socket information, see the Mechanical Information page)
Recommended Board Layout for QFP (Quad Flat Pack) packages and prototyping sockets, download the EIA Standard Board Layout drawing (15kB pdf).
| Package | Pins | Actel Part Number |
Vendor Part Number |
Drawings Available |
|---|---|---|---|---|
| BGA 1.27mm |
272 ball 27mm x 27mm |
SC-BG272 | CTI Part #: 8627-272-0-00 |
sc-bg272.pdf (288kb) |
| SM-BG272-A SM-BG272-B |
Mill-Max Part #: S587-10-272-10-005437 S582-11-272-10-005414 |
sm-bg272-a.pdf (137kb) sm-bg272-b.pdf (236kb) sm-bg272-ab.pdf (127kb) |
||
| BGA 1.27mm |
329 ball 31mm x 31mm |
SM-BG329-A SM-BG329-B |
Mill-Max Part #: S587-10-329-12-005437 S582-11-329-12-005414 |
sm-bg329-a.pdf (140kb) sm-bg329-b.pdf (237kb) sm-bg329-ab.pdf (124kb) |
| BGA 1.27mm |
313 ball 35mm x 35mm |
SC-BG313 | CTI Part #: 8635-313-0-00 |
sc-bg313.pdf (196kb) |
| CQFP | 132 pin 172 pin 196 pin |
SY-CQ196 | Yamaichi Part #: IC51-1964-1952 |

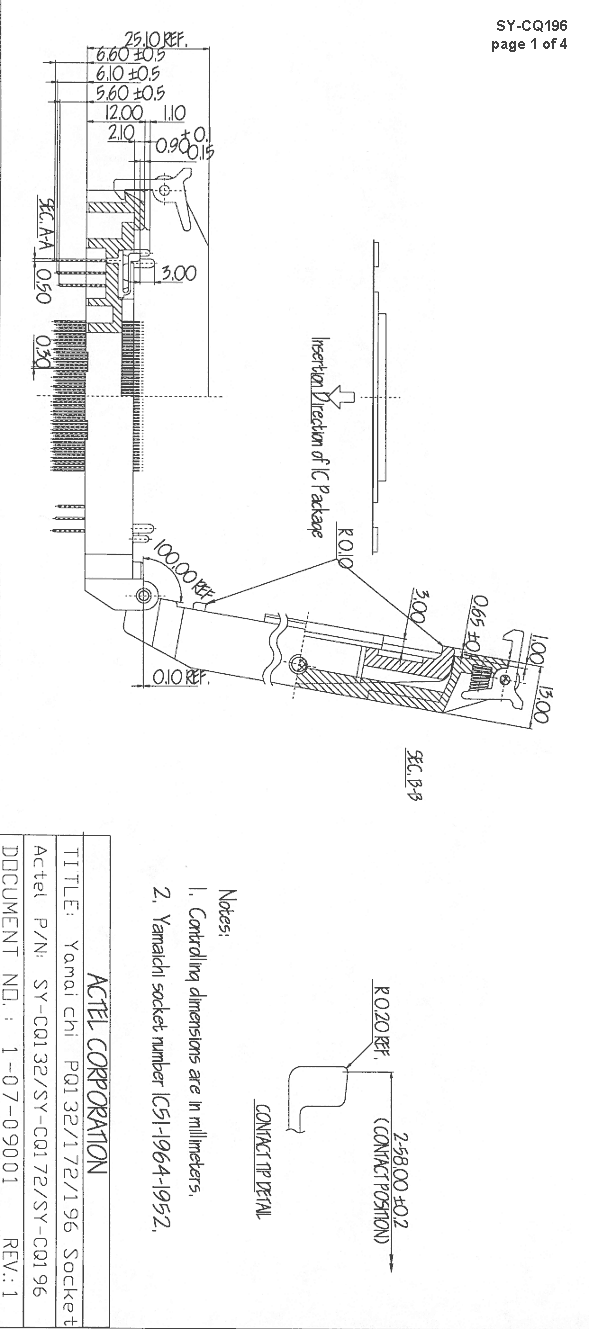

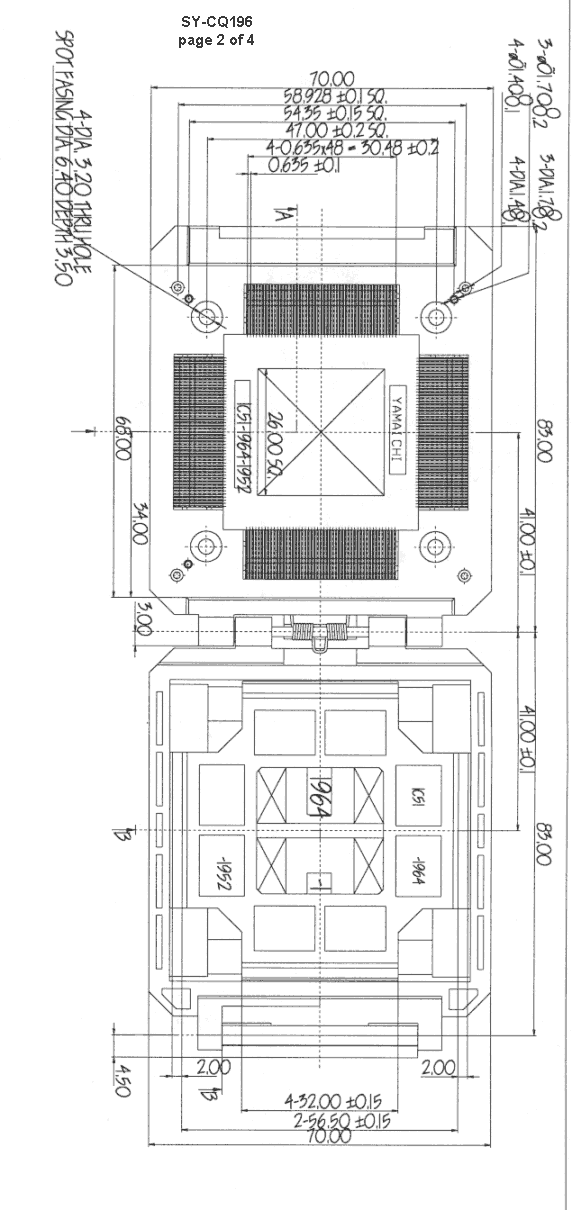

sycq196a.gif (58kb) sycq196b.gif (65kb) pinout 132 (pdf 10kb) pinout 172 (pdf 10kb) pinout 196 (pdf 10kb) |
| PQFP | 100 pin | SY-PQ100-1 | Yamaichi Part #: IC149-100-114-S5 |
sy-pq100-1.pdf (222kb) |
| PQFP | 144 pin | SY-PQ144-1 | Yamaichi Part #: IC149-144K11453-0 |
sy-pq144-1.pdf (225kb) |
| PQFP | 160 pin | SY-PQ160-1 | Yamaichi Part #: IC149-160-123-S5 |
sy-pq160-1.pdf (230kb) |
| PQFP RQFP |
208 pin | SY-PQ208-2 | Yamaichi Part #: IC149-208-161-S5 |
sy-pq208-2a.pdf (297kb) sy-pq208-2b.pdf (202kb) |
| PQFP RQFP |
240 pin | SY-PQ240 | Yamaichi Part #: IC149-240-167-S5 |
sy-pq240a.pdf (292kb) sy-pq240b.pdf (135kb) |
| TQFP | 176 pin | SY-TQ176 | Yamaichi Part #: IC149-176-166-S5 |
sy-tq176a.pdf (253kb) sy-tq176b.pdf (142kb) |
| TQ144 | 144 pin | SY-TQ144 | Yamaichi Part #: IC149-144-145-S5 |
sy-tq144a.pdf (251kb) sy-tq144b.pdf (130kb) |
| VQFP | 80 pin | SY-VQ80-2 | Yamaichi Part #: IC149-080-151-S5 |
sy-vq80-2a.pdf (171kb) sy-vq80-2b.pdf (122kb) |
| VQFP | 100 pin | SY-VQ100-1 | Yamaichi Part #: IC149-100-125-S5 |
sy-vq100-1a.pdf (176kb) sy-vq100-1b.pdf (120kb) |
Note: If an existing board layout does not have the alignment pin hole, the new SY-PQ and SY-VQ sockets can still be used by breaking off the alignment pins.
Recommended method of attaching sockets to PCB:
For BGA sockets, please see socket drawing for details.
If you have any questions relating to these sockets, please email Ken O'Neill at Actel Product Marketing (keno@actel.com).
