Preparing the jc2_ver Design

1. To open and view the jc2_ver design, double-click jc2_top in the Sources window. The Text Editor window appears, showing the jc2_ver design. You would normally develop your source design in the Text Editor.

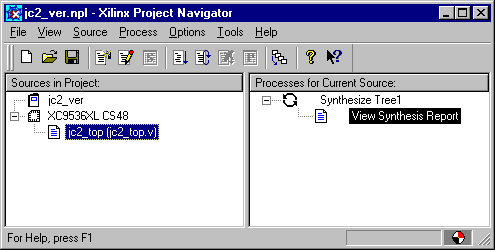

2. Double-click View Synthesis Report (found under Processes for Current Source). The transcript will display the success or failure of the syntesis and display the report file in the report viewer.
