Open the jc2_vhd Tutorial Project
A project contains all of your design source files.
1. Start the WebPACK Project Navigator
by clicking on the
icon in the Xilinx CPLD WebPACK program group.
The Project Navigator screen will appear.
2. Select File
Open Project
3. Open the jc2_vhd folder under DesignEntry\examples and select the jc2_vhd.npl project (which has already been created for you):

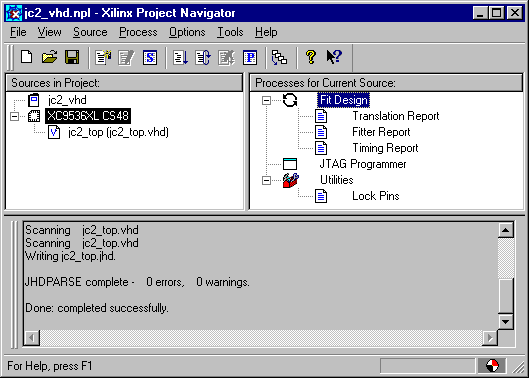

You will see the following screen:
The project is now open and ready
for synthesis.
Continue
with Preparing the Design
