Open the jc2_abl Tutorial Project
A project contains all of your design source files.
1. Start the WebPACK Project Navigator by clicking on the icon in the Xilinx CPLD WebPACK program group.

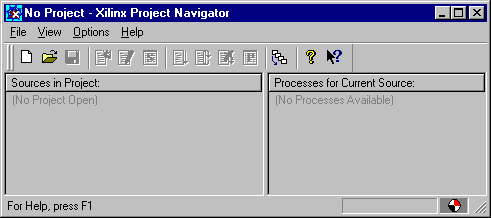

The Project Navigator screen will appear.
2. Select File Open Project
3. Open the jc2_abl folder under DesignEntry\examples and select the jc2_abl.npl project (which has already been created for you):

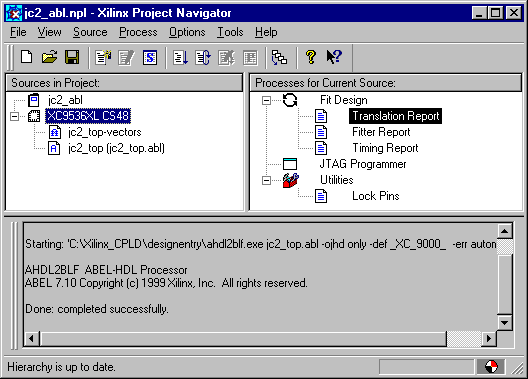

You will see the following screen:
The project is now open and ready
for synthesis.
