Setting Pterms from Design Manager

1. From the Design Manager menu select Design -> Implement. The Implement dialog appears. Select the Options button.

2. The Options dialog appears. On the Implementation line under Program Option Templates, click the Edit Template button.

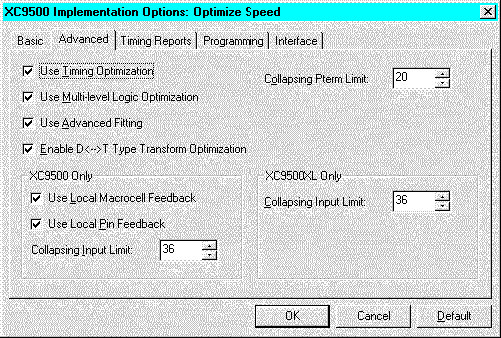

3. Select the Advanced tab to see the following dialog.

4. Set the Collapsing Pterm Limit as needed.

)
